Sovereignty Series - Internal Winch with Reinforced Raised Door Frame

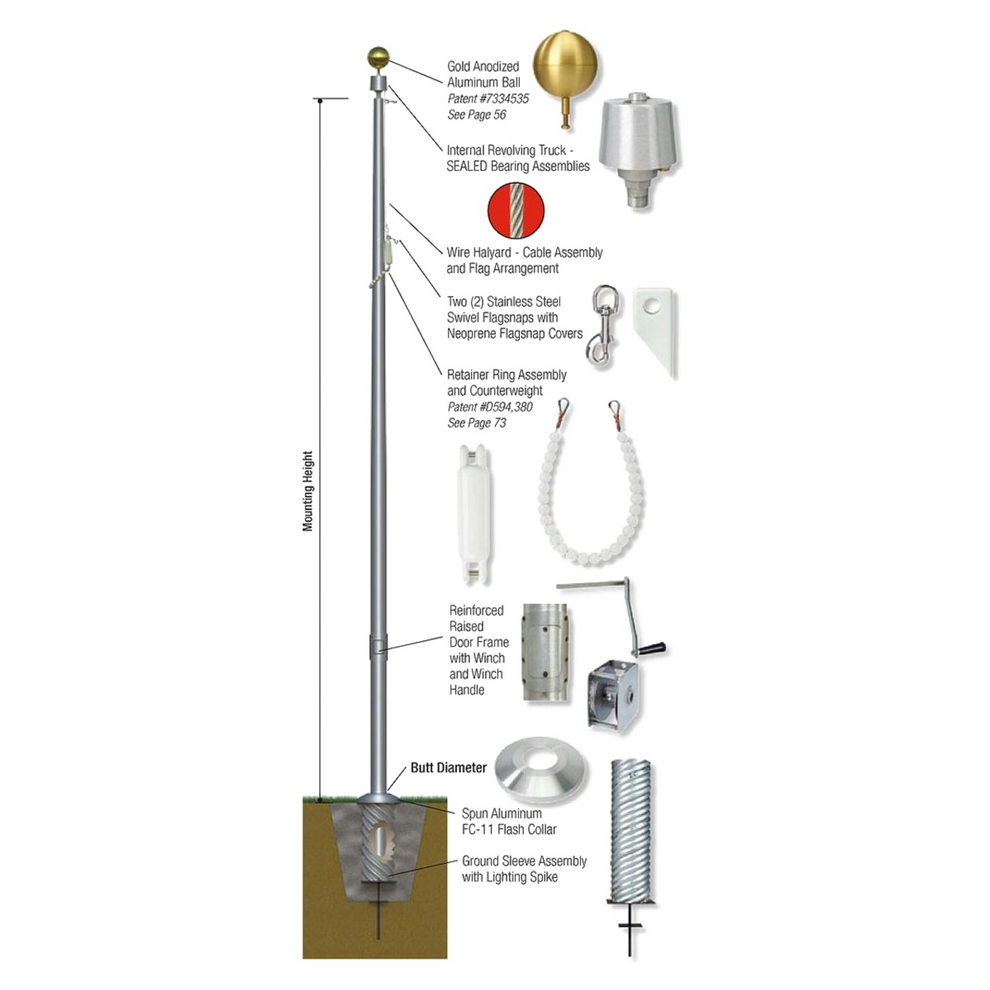

The Sovereignty Series from Concord American Flagpole offers flagpoles in butt diameters from 5"to 7" and heights from 20' to 40'. The raised reinforced door frame design combines the security of an Internal Halyard Winch and Wire Cable system with the reinforced strength necessary for moderate wind speed areas.- Standard Specifications

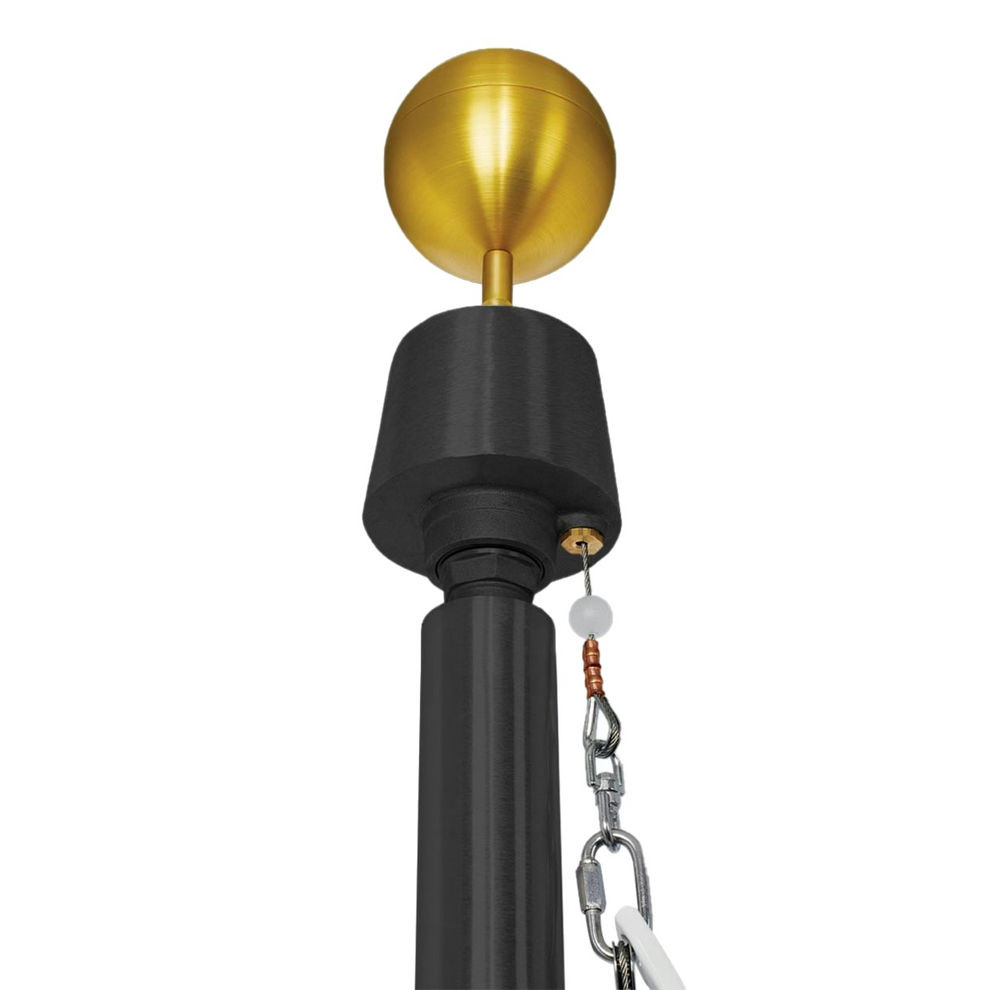

- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Revolving Truck with Dual SEALED
Stainless Steel Bearing Assemblies, Aluminum
Spindle, Cast Brass Exit Bushing and Removable Hood - Complete Internal Halyard Assembly
- Wire Halyard Cable Assembly
- Flag Arrangement (8' x 12' and Larger Flags Include
Heavy-Duty Shock Spring Assembly)
- Two (2) Stainless Steel Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- Patented, Plastic Coated Counterweight

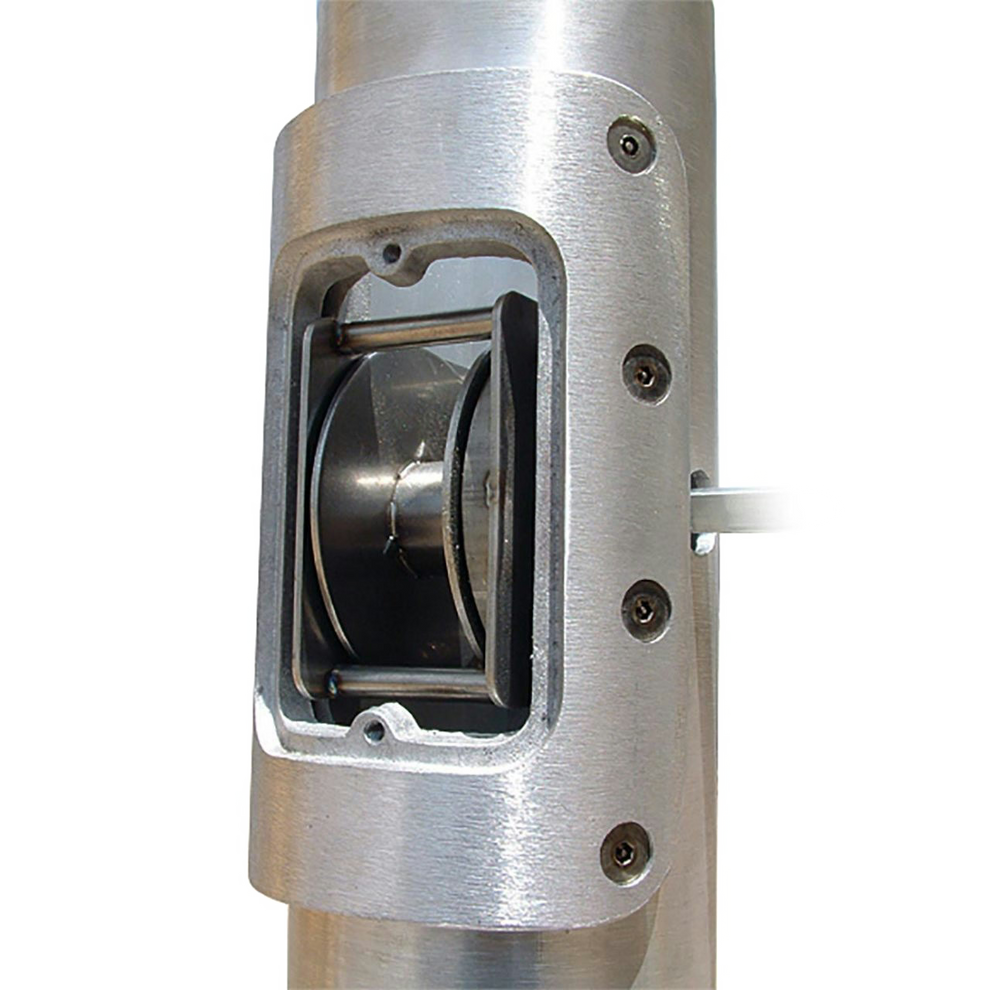

- Beaded Retainer Ring Assembly - Stainless Steel Winch Assembly with Removable
Hand Crank - Reinforced Raised Door Frame

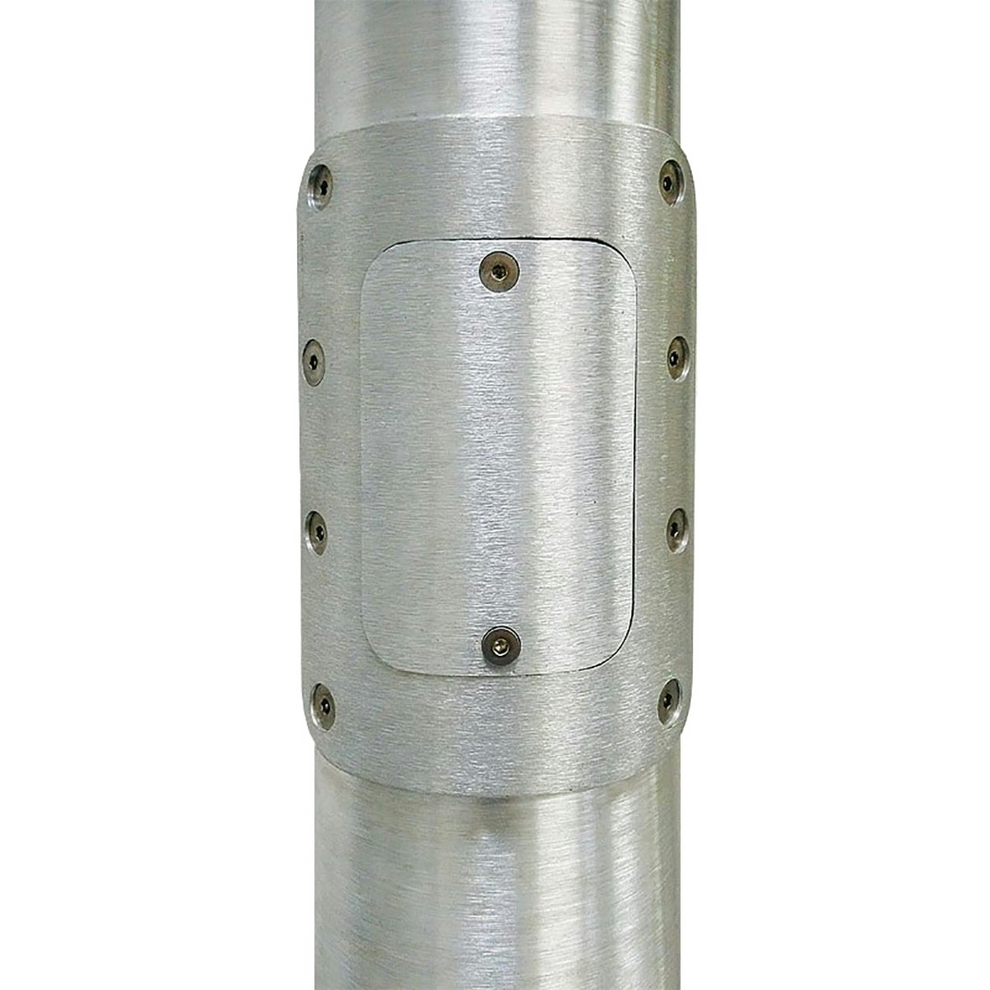

- Flush Mount Access Door with two (2) Tamper Proof
Screws - Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground
Sleeve with Steel Grounding Spike
-
Warranty Information
-
Additional Information
Clearance Non-Clearance Country Of Origin United States Season Everyday Butt Diameter 5in Exposed Height 30ft Flagged Windspeed 94 mph Size 30ft Top Diameter 3in Unflagged Windspeed 130 mph Wall Thickness .188in Type Commercial Product Type Flagpoles Color Black Color Bronze Anodized Color Bronze Powder Coat Color Black Anodized Color Powder Coat White Color Clear Anodized Color Clear Powder Coat Color Satin Left Overlay Image Made in the USA.png HR-CX true Brand American Flagpole
Sovereignty Series - Internal Winch with Reinforced Raised Door Frame
The Sovereignty Series from Concord American Flagpole offers flagpoles in butt diameters from 5"to 7" and heights from 20' to 40'. The raised reinforced door frame design combines the security of an Internal Halyard Winch and Wire Cable system with the reinforced strength necessary for moderate wind speed areas.
- Standard Specifications
- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Revolving Truck with Dual SEALED
Stainless Steel Bearing Assemblies, Aluminum
Spindle, Cast Brass Exit Bushing and Removable Hood - Complete Internal Halyard Assembly
- Wire Halyard Cable Assembly
- Flag Arrangement (8' x 12' and Larger Flags Include
Heavy-Duty Shock Spring Assembly)
- Two (2) Stainless Steel Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- Patented, Plastic Coated Counterweight
- Beaded Retainer Ring Assembly - Stainless Steel Winch Assembly with Removable
Hand Crank - Reinforced Raised Door Frame
- Flush Mount Access Door with two (2) Tamper Proof
Screws - Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground
Sleeve with Steel Grounding Spike
| Clearance | Non-Clearance |
|---|---|
| Country Of Origin | United States |
| Season | Everyday |
| Butt Diameter | 5in |
| Exposed Height | 30ft |
| Flagged Windspeed | 94 mph |
| Size | 30ft |
| Top Diameter | 3in |
| Unflagged Windspeed | 130 mph |
| Wall Thickness | .188in |
| Type | Commercial |
| Product Type | Flagpoles |
| Color | Black |
| Color | Bronze Anodized |
| Color | Bronze Powder Coat |
| Color | Black Anodized |
| Color | Powder Coat White |
| Color | Clear Anodized |
| Color | Clear Powder Coat |
| Color | Satin |
| Left Overlay Image | Made in the USA.png |
| HR-CX | true |
| Brand | American Flagpole |
